High Efficiency Stone Crusher Double Rotor Pf 1010 Series Impact Crusher
Structure of Stone Impact Crusher
When the impact crusher works, the motor drives the rotor rotate of the impact crusher with high speed, on the rotor where installed the hammers.
When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously.
And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won’t stop till the material are crushed to the required size and then discharged from outlet of the impact crusher.
Application of Stone Impact Crusher
This kind of machine can crush the large, medium and small size materials (granite, limestone, concrete ,etc) with max feed size less than 500mm and crushing strength less than 360Mpa. It is widely used for crushing
ore in mining, highway, railway, construction, etc.
Presently, by practices, its comprehensive function is superior to the cone crusher and the hammer crusher.
Features of Stone Impact Crusher
High-efficiency and energy saving; cubic shaped, granule of the final products can be adjusted, simplified crushing process. the new type of dedusting device can be configured to eliminate the dust and benefit to the environment.
Technical Parameters-PFW Two-cavity Impact Crusher:
| Model | Max input size (mm) | Capacity(t/h) | Power (kW) | Overall dimension L×W×H(mm) | Weight(t) |
| PFW1007-Ⅱ | 300 | 40-90 | 45-55 | 2130×1530×1700 | 11 |
| PFW1010-Ⅱ | 350 | 70-120 | 55-75 | 2130×1830×1700 | 14 |
| PFW1210-Ⅱ | 400 | 100-160 | 90-110 | 2550×1940×2110 | 17 |
| PFW1214-Ⅱ | 450 | 130-200 | 132-160 | 2550×2340×2110 | 22 |
| PFW1315-Ⅱ | 500 | 180-320 | 160-200 | 2720×2460×2410 | 29 |
| PFW1320-Ⅱ | 550 | 230-450 | 200-250 | 2720×3060×2410 | 38 |
Technical Parameters-PFW Three-cavity Impact Crusher:
| Model | Max input size (mm) | Capacity(t/h) | Power (kW) | Overall dimension L×W×H(mm) | Weight(t) |
| PFW1007-Ⅲ | 200 | 15-60 | 45-55 | 2130×1530×1700 | 9 |
| PFW1010-Ⅲ | 200 | 50-90 | 55-75 | 2130×1830×1700 | 12 |
| PFW1210-Ⅲ | 250 | 70-140 | 90-110 | 2550×1940×2110 | 15 |
| PFW1214-Ⅲ | 250 | 90-190 | 132-160 | 2550×2340×2110 | 19 |
| PFW1315-Ⅲ | 300 | 120-280 | 160-200 | 2720×2460×2410 | 25 |
| PFW1320-Ⅲ | 300 | 160-350 | 200-250 | 2720×3060×2410 | 31 |

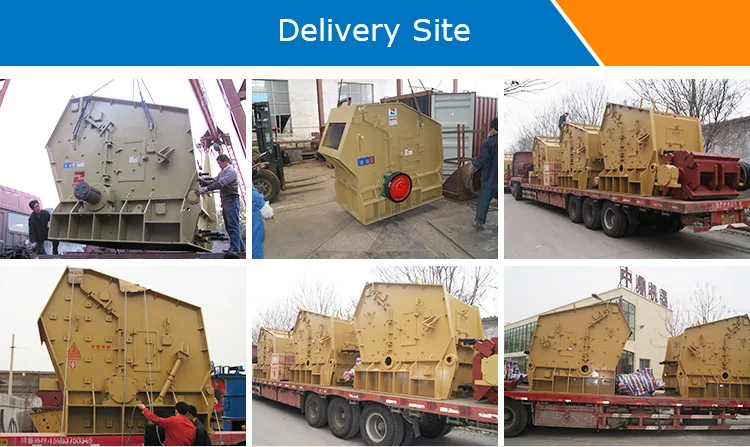

Product Picture Show:
Before we send the best quotation , you can consider the following question:
1. What is the raw material for the production line?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product?
If you have any queation, please contact us!
|
|
